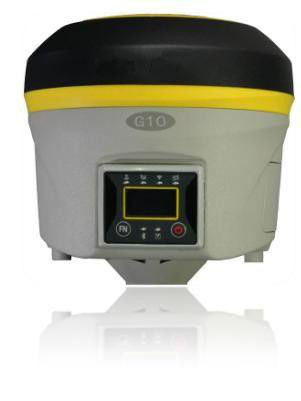

Trimble Board IP67 220 Channels G10 GNSS RTK

Trimble Board IP67 220 Channels G10 GNSS RTK
Trimble Board IP67 220 Channels G10 GNSS RTK Trimble Board IP67 220 Channels G10 GNSS RTK Trimble Board IP67 220 Channels G10 GNSS RTK

Large Image :  Trimble Board IP67 220 Channels G10 GNSS RTK

Product Details:
Place of Origin: Made in china
Brand Name: No brand or OEM
Certification: No certificate
Model Number: G10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Package in case
Delivery Time: 15 Working days after confirmation
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces Per Year

Trimble Board IP67 220 Channels G10 GNSS RTK

Description
Channel: 220 Channels Screen Size: 3.5inch
GPS: L1 C/A, L2C, L2E, L5 GLONASS: L1 C/A, L1P, L2 C/A, L2P,L3
SBAS: L1 C/A, L5 GALILEO: E1, E5A, E5B
Initialization Time: Typically<10s Real Time Kinematics(RTK): Horizontal: 8mm + 0.8ppm RMS;Vercial:15mm + 1ppm RMS
Code Differential Positioning: Horizontal: 0.25mm + 1ppm RMS; Vertical: 0.45mm + 1ppm RMS Compass: B1(QPSK),BI-MBOC(6,1,1/11),B1-2(QPSK),B2(QPSK),B2-BOC(10,5),B3 (QPSK), B3BOC(15,2,5), I5(QPSK)
Frequency Range: 410~470MHz Size: Φ14cm X 14.4cm (H)
Waterproof/Dustproof: IP67 Power: Lithium Battery Working Time In Static(GPS+GLONASS) :12hours
High Light:

gnss rtk receiver

,

G10 GNSS RTK

,

IP67 GNSS Receiver



G10 220 channels GNSS Receiver with trimble board BD970





  SPECIFICATION





RECEIVER



  • Channels :220 GNSS



  • Satellites Tracked



    GPS: Simultaneous L1C/A, L2C, L2E, L5



    GLONASS: Simultaneous Ll C/A, LIP, L2 C/A, L2P,L3



    SBAS: Simultaneous LI C/A, L5



    GALILEO Simultaneous El, E5A, E5B(reserved)



    COMPASS: Bl (QPSK), Bl- MBOC (6,1, 1/11), BI-2 (QPSK), B2 (QPSK), B2-BOC (10,5), B3 (QPSK),B3BOC(15,2,5),l5(QPSK)



    QZSS: Ll C/A, Ll SAIF, L2C, L5

  • Position Rate: Up to 50 Hz



  • Signal Reacquisition: < 1 sec



  • RTK Signal Initialization: Typically < 10 s



  • Hot Start: Typically < 15 s



  • Initialization Reliability: > 99.9 %



  • Internal Memory: 4 GB (Over 45 days of raw static data storage with recording sample every 1 second)



  • Micro SD Card: Expansion slot with 4 GB internal memory (32 GB optional)



    POSITIONING



  • HIGH PRECISION STATIC SURVEYING (Lon Time Observations) Horizontal: 2.5 mm + 0.1 ppm RMS



    Vertical: 3.5 mm + 0.4 ppm RMS

  • FAST STATIC



    Horizontal: 3 mm + 0.5 ppm RMS



    Vertical: 5 mm + 0.5 ppm RMS



  • CODE DIFFERENTIAL POSITIONING Horizontal: 0.25 mm + 1 ppm RMS



    Vertical: 0.45 mm + 1ppm RMS



  • SBARS POSITIONING(Typical) Horizontal: 0.5 m RMS²



    Vertical: 0.8 RMS²



  • REAL TIME KINEMATIC(<30km)-NETWORK SURVEYING³ Fixed RTK Horizontal: 8mm +0.8ppm RMS



    Fixed RTK Vertical: 15mm + 1ppm RMS

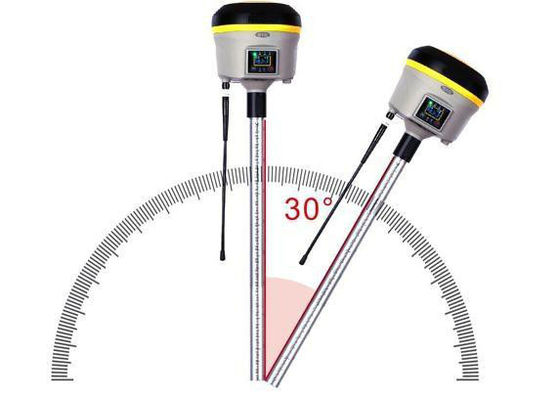

  • TILTED POSITINING(2m POLE) 10°inclination 20 mm RMS



    20°inclination 30 mm RMS 30°inclination 50 mm RMS



    COMMUNICATION

  • Connectors I/O



  • 7-pins Lemo and 5-pins Lemo Interfaces. Multifunction cable with USB interfaces for PC connection.



  • Bluetooth device: 2.4 GHz class Il



  • Wi-Fi: IEEE 802.11 b/g/n



  • Web UI: To upgrade the software, manage the status and settings, data download, etc. via smart phone, tablet or other internet enabled



    electronic device



  • Navigation outputs: ASCII (NMEA-0183) GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, Reference



    outputs: CMR, CMR+, sCMRx, RTCM2.1, RTCM2.3 RTCM3.O, RTCM3.1,GRS, GBS.



    INTEGRATED GNSS ANTENNA



  • High accuracy four constellation micro-strip antenna, zero-phase center with internal multipath suppressive board.



    INTERNAL RADIO

  • Frequency Range: 410-470MHz



  • Channel Spacing: 12.5KHz/25 KHz



  • Rx/Tx Power:2W



  • Maximum Range: 3-4 Km in urban environment, up to 10 Km with optimal conditions.



  • Protocol: Transparent EOT/EOC/FST, SATEL. South, TRIMTALX 11/11e, TRIMMARK 3, TRIMTALK 450S



    WIRELESS MODULE

  • Band: GSM/GPRS/EDGE: 850/900/1800/1900 MHz



    WCDMA/HSDPA: 850/1900/2100 MHz

  • Output Power: GSM850, EGSM900: 33 dBm(2W)



    GSM1800, PCS1900: 30 dBm(1W), WCDMA: 24 dBm



    POWER SUPPLY



  • Battery: Rechargeable and replaceable 11.1 V -3400 -37.74Wh intelligent lithium battery

  • Voltage: 9 to 22 V DC external power input



  • Working Time in Static ( GPS+GLONASS):12hours



  • Working Time in GSM RTK( GPS+GLONASS):6.5hours



  • Charge Time(2batteries):Typically 4hours



  • Power Consumption:<6w



    PHYSICAL SPECIFICATION

  • Size: Φ14cm×14.4cm H



  • Operating Temperature: -40℃to 65℃ (-22℉to149℉)



  • Storage Temperature: -40℃to 85℃ (-40℉to185℉)



  • Operating Temperature with UHF UHF Radio: -30℃to 50℃

  • Waterproof/ Dustproof: IP67



    s Shock Resistance: Designed to endure to a 2 m pole drop on



    concrete floor with no damage. Designed to endure a 1 m free drop on



    hardwood floor with no damage



    s Vibration : Vibration resistan
