MG858S 372 Channels Handheld GNSS RTK

Best Products
China GEO-ALLEN CO.,LTD. certification
China GEO-ALLEN CO.,LTD. certification
I'm Online Chat Now

MG858S 372 Channels Handheld GNSS RTK

MG858S 372 Channels Handheld GNSS RTK
MG858S 372 Channels Handheld GNSS RTK MG858S 372 Channels Handheld GNSS RTK MG858S 372 Channels Handheld GNSS RTK MG858S 372 Channels Handheld GNSS RTK

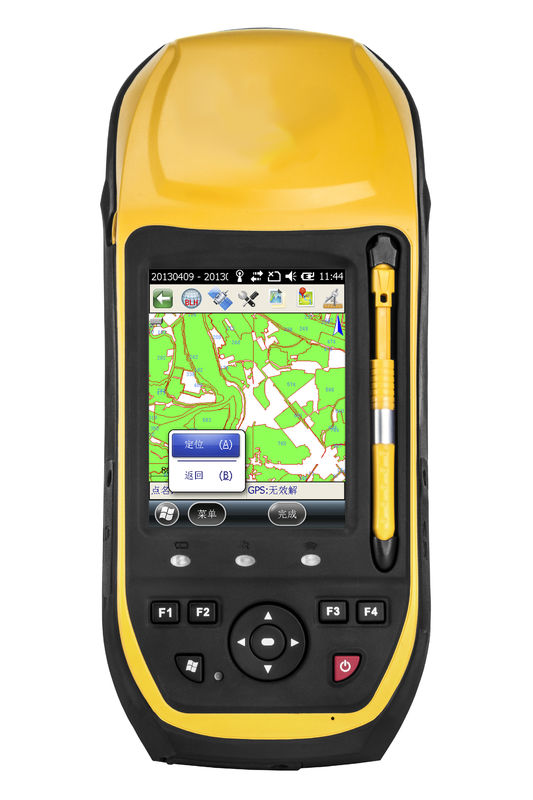

Large Image :  MG858S 372 Channels Handheld GNSS RTK

Product Details:
Place of Origin: China
Brand Name: No brand or OEM
Certification: CE certificate
Model Number: MG8 Serial
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Plastic case & carbon box
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs

MG858S 372 Channels Handheld GNSS RTK

Model Name: MG858S Operating System: Windows
Accuarcy: Single-point: 1.2m RTK: Horizontal: 1cm+1ppm Vercial: 2cm+1ppm
Memory: RAM 258MB+ ROM 4G Come With: Wifi/ Bluetooth / WCDMA
CPU: MG8PLUS 833HZ Positioning Time: RTK Initializationa 120s
Working Hours: 14hours Working Temperature: -20℃- +60℃
Storage Temperature: -30℃- +70℃ Color: Yellow
Waterproof: IP66
High Light:

MG858S handheld gnss


handheld gnss receiver


handheld rtk gps

MG858S 372 channels handheld gnss with GPS/GLONASS/Beidou L1/B1 support Wifi/Bluetooth/WCDMA




Operating System Windows mobile6.5 professional
GNSS Channels: 372
reserve upgrade for GALILEO,QZSS system
Accuracy Single-point: 1.2m
SBAS: 0.3m
DGPS: 0.2m
RTK: horizontal: 1cm+1ppm;Vertical: 2cm+1ppm
Positioning Time Cold start:<60s,Low-temperature start:<30s,Warm start:<10s
RTK initialization: 120s
Memory RAM: 258MB(Optional 512MB)
ROM:4G(expand to 32G)
Memory expansion:support SD card storage expansion
Communication Wireless communication: support WIFI,Bluetooth
Network communication: standard 3.75G
WCDMA network communication,sopport for voice calls
USB: USB2.0 interface,support for USB OTG
Screen 3.7inch Blanview TFT transflective screen,resolution 640*480 pixels
Power 37.7W smart Li-ion battery,removable,with
electricity indicator and temperature control chip
Working time: typical 14 hours
Environment Working temperature: -20℃-+60℃
Storage temperature:-30℃-+70℃
Water/dustproof: IP66(Optional IP67)
Shock:1.5meters drop to the hard ground without damage
Humidity:95% non-condensing
Extended Function Camere: 5 mega pixels, support auto focus
Support a microphone recording
