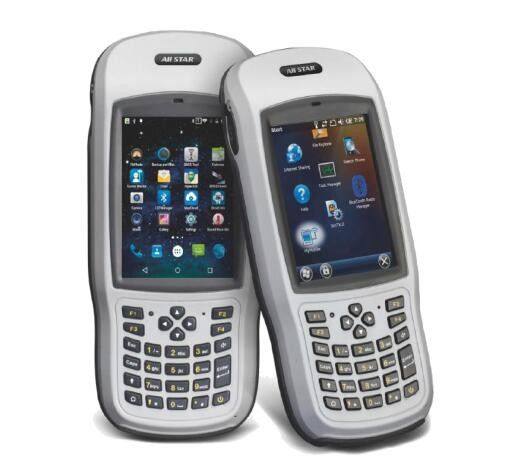

WIFI High Precision Controller S17M GNSS RTK

WIFI High Precision Controller S17M GNSS RTK
WIFI High Precision Controller S17M GNSS RTK

Large Image :  WIFI High Precision Controller S17M GNSS RTK

Product Details:
Place of Origin: Made in china
Brand Name: No brand or OEM
Certification: No Certificate
Model Number: S17M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Package in carton
Delivery Time: 15working days afrer confirmation
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces per year

WIFI High Precision Controller S17M GNSS RTK

Description
Operate System: Windows Mobile 6. X Keyboard: 27 Key Number+control Key
Software: SurvCE, FieldGenius Power: Li-battery, 6500mAh, 3.7V
Size: 200mm X 96mm X 32mm Weight: 515g (Wiith Battery)
High Light:

G10 gnss rtk receiver

,

G9 gnss gps receiver

,

S17M GNSS RTK



Controller S17M for G9 & G10 GNSS Receiver



Specifications:









CPU 512M
ROM 4GB
Operate system Windows Mobile 6.X
Keyboard 27 key number+control key
Screen resolution 480 x 640
Camera 5M pixel
Size 200mm x 96mm x 32mm
Weight 515g (including battery)
GNSS performance
GNSS GPSL1+BDB1/GPS L 1+GLONASS G1
Channel 72
Raw Data -
NMEA-0183 Support
Rove/Base -
Positiong accuracy
Single 2.5m
SBAS 2m
RTK -
Communication and data storage
WIFI Support
USB interface Type B USB
Interface DB9 standard series port
Storage extension TF card, upto 32GB
Long distance bluetooth Optional
Standard bluetooth V2.1
NFC -
Voice communication nonsupport
GSM/3G (WCDMA) 3G (WCDMA)
Power
Power input DC5V, 1A
Removable Li-baterry 6,500mAh, 3. 7V
Environment
Work environment ‐20℃ ~ +60℃
Storage temprature ‐30℃ ~ +70℃
Dustproof waterproof grade IP65
Anti-dropping 1.2m free dropping
Accessory
Standard accessories Power adaptor, USB cable, battery, series port
cable,stylus,

  hand strap, screen film,Operational guidelines
Optional accessories Bracket, external antenna, external antenna patch cord
Software support
Software SurvCE, FieldGenius
