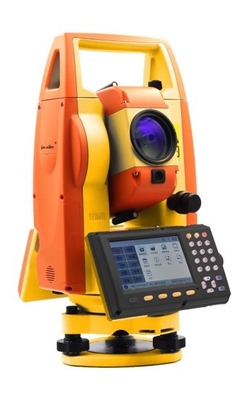

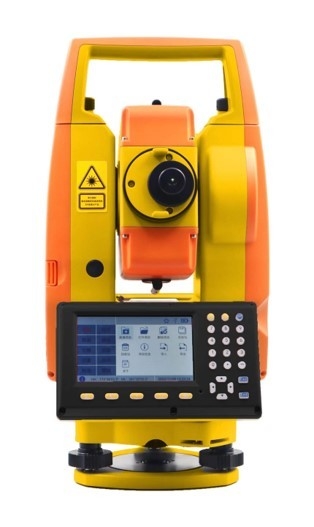

GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless

GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless
GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless

Large Image :  GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless

Product Details:
Place of Origin: China
Brand Name: GEOALLEN
Model Number: GTS-342R10A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Delivery Time: two weeks after confirmation
Payment Terms: L/C, T/T
Supply Ability: 50pcs per month

GTS342R10A Geoallen Touchscreen Total Station, 1000m Prismless

Description
Prismless Range: 1000m Accuracy: 2'
Screen: 3.5 Inch Touch Screen Mini Reading: 1" /5'' Optional
IP: IP-54 Battery: Chargeable Lithium Battery
Angle Measurement: 1”/5”/10”/20” Data Storage: Internal Memory/External Memory
Data Transfer: USB/Bluetooth/Wi-Fi/GPRS/GSM Display: LCD/LED
IP Rating: IP54 Interface: RS232/USB
Power Supply: Rechargeable Battery/External Power Warranty: 1 Year

GTS-342R10A Geoallen Geoallen Touchscreen Total Station, 1000m Reflector


Specifications


 GTS342R10AGTS341R10A
DISTANCE MEASURING
Max. Distanceone prism3.5km3.5km
(good weather)reflecting paper1000m1000m
 prismless1000m1000m
displayMax:999999.99M Min:1mm
accuracy(with prism)± (2mm+2x10-6*D)±(1mm+1x10-6*D)
accuracy(prismless)0-300m 3+2ppm,300-600m 5+2ppm,>600m 10+2ppm
measuring time(with prism)fine: 1.2s, tracing: 0.25s,repeat:0.35s
measuring time(prismless)fine: 0.8s, tracing: 0.3s,repeat:0.5s
wether constance changeautomatic change after input constance
prism constance changeautomatic change after input constance
ANGLE MEASURING
measurment wayabsolute encode
Crosshair plate diam.79MM
Min. Reading1" /5'' optional0.1''/1'' optional
accuracy 2"1''
VERTICAL COMPENSATOR
system dual axis liquid-electric sensor
working range +/-6'
precision 1"
LEVEL SENSITIVITY
plate level 30"/2mm
cicular level 8'/2mm
TELESCOPE
imageerect
length of telescope152MM
Diam. of objective len'stelescope:45mm/distance measure:47mm
Magnificant30*
Field of view 1° 30'
Min. focus 1.3m
SOFTWARE AND MEMORY
on board software functionREM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point
Point to line measurement,Road,Stake Out,Resection,data collection
Angle measurement,Distance,Coordinate measurement,etc.
Area&Perimeter, Pt-Line Inverse, 2 Points Inverse,
4 Points Inverse, Meridian convergence
INTEMAL MEMORY96MB(record 100000 point)
DATA COMMUNICATION PORT
typeRS232C,USB,SD card reader, buletooth
DISPLAY
typedual face
POWER
sourcechargeable lithium battery
voltageDC7.4V
continues working time8 H
MEASURMENT AND WEIGHT
dim.180*200*350 MM
weight6.0KG
