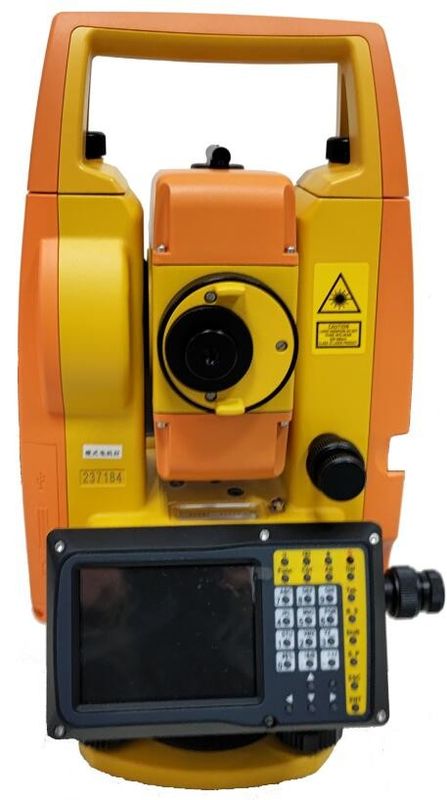

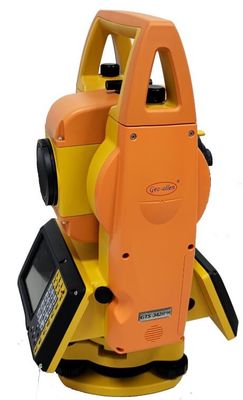

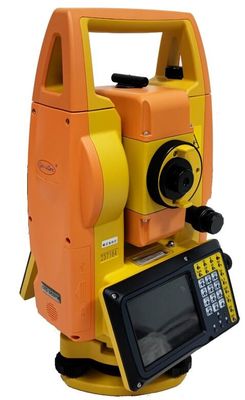

Product Details:
|
Prismless Range: | 1000m | Accuracy: | 2' |
---|---|---|---|
Screen: | 3.5 Inch Touch Screen | Mini Reading: | 1" /5'' Optional |
IP: | IP-54 | Battery: | Chargeable Lithium Battery |
Specifications
GTS342R10A | GTS341R10A | |||
DISTANCE MEASURING | ||||
Max. Distance | one prism | 3.5km | 3.5km | |
(good weather) | reflecting paper | 1000m | 1000m | |
prismless | 1000m | 1000m | ||
display | Max:999999.99M Min:1mm | |||
accuracy(with prism) | ± (2mm+2x10-6*D) | ±(1mm+1x10-6*D) | ||
accuracy(prismless) | 0-300m 3+2ppm,300-600m 5+2ppm,>600m 10+2ppm | |||
measuring time(with prism) | fine: 1.2s, tracing: 0.25s,repeat:0.35s | |||
measuring time(prismless) | fine: 0.8s, tracing: 0.3s,repeat:0.5s | |||
wether constance change | automatic change after input constance | |||
prism constance change | automatic change after input constance | |||
ANGLE MEASURING | ||||
measurment way | absolute encode | |||
Crosshair plate diam. | 79MM | |||
Min. Reading | 1" /5'' optional | 0.1''/1'' optional | ||
accuracy | 2" | 1'' | ||
VERTICAL COMPENSATOR | ||||
system | dual axis liquid-electric sensor | |||
working range | +/-6' | |||
precision | 1" | |||
LEVEL SENSITIVITY | ||||
plate level | 30"/2mm | |||
cicular level | 8'/2mm | |||
TELESCOPE | ||||
image | erect | |||
length of telescope | 152MM | |||
Diam. of objective len's | telescope:45mm/distance measure:47mm | |||
Magnificant | 30* | |||
Field of view | 1° 30' | |||
Min. focus | 1.3m | |||
SOFTWARE AND MEMORY | ||||
on board software function | REM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point | |||
Point to line measurement,Road,Stake Out,Resection,data collection | ||||
Angle measurement,Distance,Coordinate measurement,etc. | ||||
Area&Perimeter, Pt-Line Inverse, 2 Points Inverse, | ||||
4 Points Inverse, Meridian convergence | ||||
INTEMAL MEMORY | 96MB(record 100000 point) | |||
DATA COMMUNICATION PORT | ||||
type | RS232C,USB,SD card reader | |||
DISPLAY | ||||
type | dual face | |||
POWER | ||||
source | chargeable lithium battery | |||
voltage | DC7.4V | |||
continues working time | 8 H | |||
MEASURMENT AND WEIGHT | ||||
dim. | 180*200*350 MM | |||
weight | 6.0KG |
