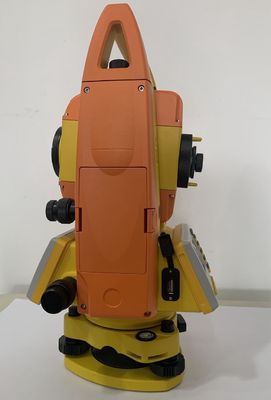

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment

Certification
China GEO-ALLEN CO.,LTD. certification
China GEO-ALLEN CO.,LTD. certification
I'm Online Chat Now

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment
GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment

Large Image :  GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment

Product Details:
Place of Origin: China
Brand Name: GEOALLEN OR OEM BRAND
Model Number: GTS-332R8
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD

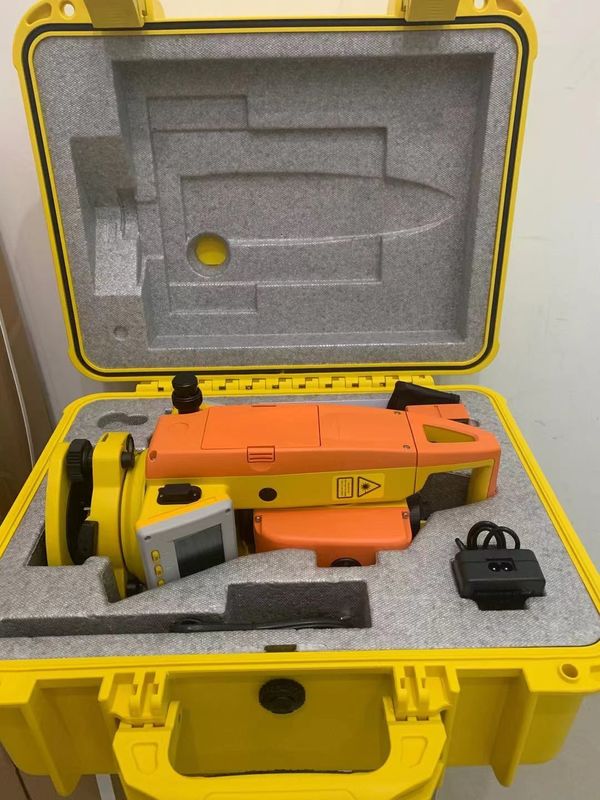

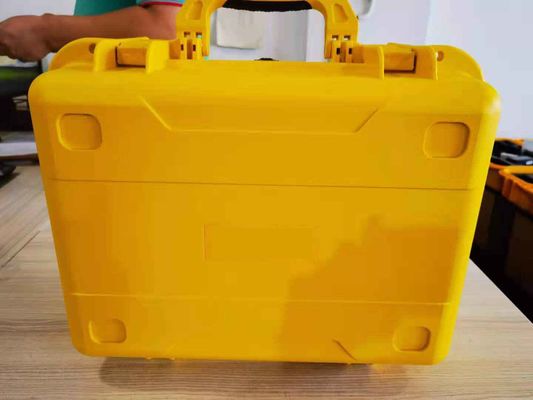

Packaging Details: plastic case + carton box
Delivery Time: one week after confirmation
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per month

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment

Description
Color: Yellow/orange Accuracy: 2"
Reflectorless Range: 800m Compensator: Dual Axies Compensator
Water/dust Proof Class: IP54 Battery: Rechargeable Li-on Battery

GTS-332R8 GEOALLEN brand total station with bluetooth survey equipment



Specifications

 GTS-332R8
DISTANCE MEASURING
Max. Distanceone prism3.5KM
(good weather)reflecting paper1000m (based on different condition)
 prismless800m (based on different condition)
DisplayMax:999999.99M Min:1MM
Accuracy2+2PPM(with prism), 5+2PPM(no prism, fine)
Measuring timefine: 1.2sec., tracing: 0.5sec.
Wether constance changeautomatic change after input constance
Prism constance changeautomatic change after input constance
ANGLE MEASURING
Measurment wayabsolute encoding
Crosshair plate diam.79MM
Min. Reading1"/5" optional
Accuracy 2"
VERTICAL COMPENSATOR
System liquid-electric detection
Working range +/-6'
Precision 1"
LEVEL SENSITIVITY
Plate level 30"/2mm
Cicular level 8'/2mm
TELESCOPE
Imageerect
Length of telescope152MM
Dia. of objective len'stelescope:45mm/distance measure:47mm
Magnificant30*
Field of view 1° 30'
Min. focus1.5m
LASER PLUMMET
Laser Power 0.5mW
Laser class ClassII
SOFTWARE AND MEMORY
On board software functionsREM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point
Point to line measurement,Road,Stake Out,Resection
data collection,Angle measurement,Distance
Coordinate measurement,etc.
INTEMAL MEMORY2000KB (record 20000~25000 point)
DATA COMMUNICATION PORT
TypeUSB
BluetoothStandard
DISPLAY
Typedual face
POWER
Sourcechargeble lithium battery
VoltageDC7.4V
Continues working time8H
MEASURMENT AND WEIGHT
Dim.160*150*340MM
Weight5.4KG
WATER AND DUST PROOFIP54
