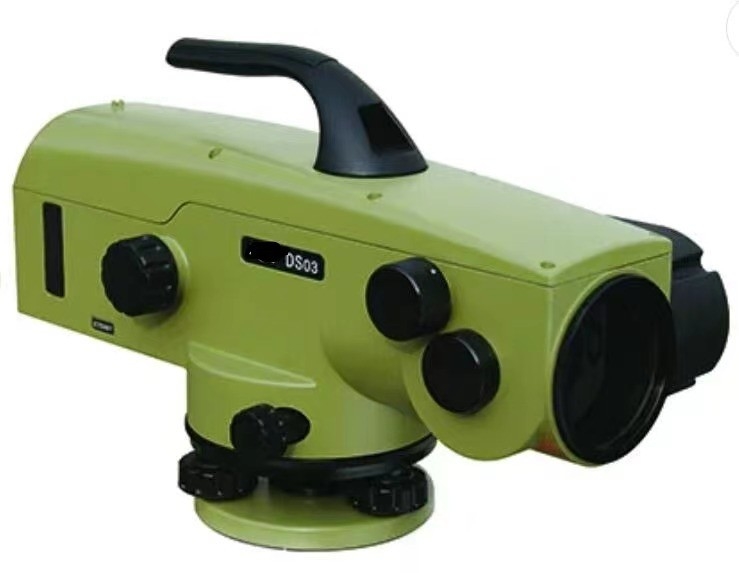

DS03 High precision Auto Level 42X with Invar staff

DS03 High precision Auto Level 42X with Invar staff
DS03 High precision Auto Level 42X with Invar staff

Large Image :  DS03 High precision Auto Level 42X with Invar staff

Product Details:
Place of Origin: China
Brand Name: GEOALLEN
Model Number: DS03
Payment & Shipping Terms:
Minimum Order Quantity: 4 PCS
Price: USD
Packaging Details: plastic case & carton box
Payment Terms: L/C, T/T
Supply Ability: 1000PCS

DS03 High precision Auto Level 42X with Invar staff

Description
Color: Green Magnification: 42X
Image: Erect Continuous Operation Time: >10 Hours
IP Standard: IP55 Minimum Focus: 1.6m

DS03 High precision Auto Level 42X with Invar staff



The DS03 precision level meets all precision, convenience and reliability requirements.
It‘s innovative technology will make daily surveying jobs easier.
Model DS03 Automatic Level is adoptable for the first-order geodetic leveling of national networks;
It can be used for engineering and deformation surveys.

Specification: (to be used with Invar staff)

Image Erect
Magnification 42×
Objective Aperture 50mm
Minimum Focus 1.6m
Field of View at 100m 2.3m
Multiplication Constant 100
Additive Constant 0
Standard Deviation of 1km Double Run ±0.3mm
Compensating Range 15′
Setting Time ≤2s
Sensitivity of Bubble 5′/2mm
Working Temperature -30℃~ +50℃
Net Weight 4kg
IP standard IP55
Battery 1900mAh Li-on Rechargeable
Continuous Operation Time >10 hours
Charging Time 3 hours
