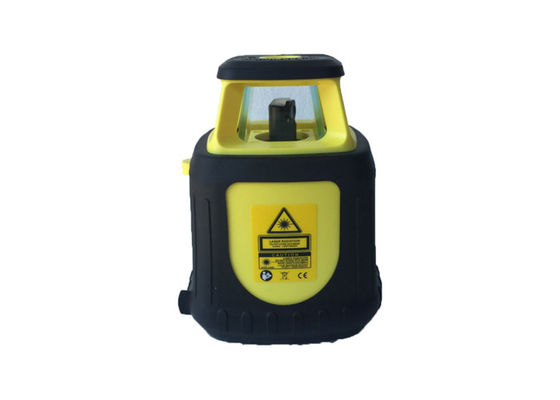

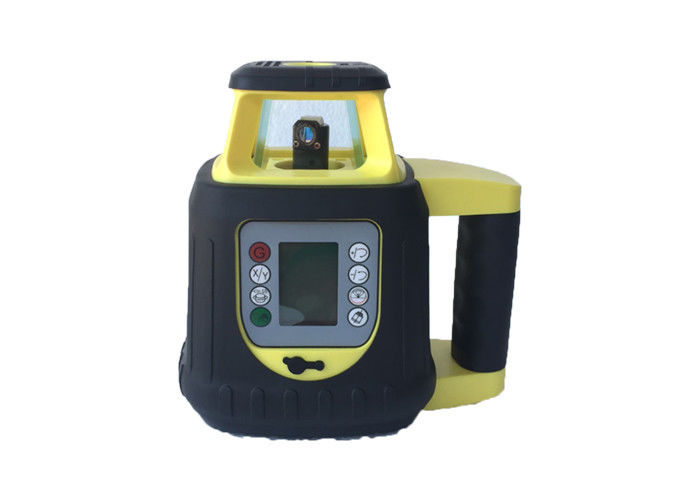

LED Display 180° Scanning Angle IP55 Rotating Laser

LED Display 180° Scanning Angle IP55 Rotating Laser
LED Display 180° Scanning Angle IP55 Rotating Laser LED Display 180° Scanning Angle IP55 Rotating Laser

Large Image :  LED Display 180° Scanning Angle IP55 Rotating Laser

Product Details:
Place of Origin: China
Brand Name: Geoallen or OEM brand
Certification: CE certificate
Model Number: FRE208-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Plastic case +Carton package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs

LED Display 180° Scanning Angle IP55 Rotating Laser

Operation Range: Dia 500m Color: Yellow / Orange
Rotating Speed: 60/120/300/600 R.p.m. Scanning Angle: 0/10°/45°/90°/180°
Idode: Green Beam Laser/red Beam Laser IP: IP55
High Light:

500m rotating laser


IP55 rotary lasers


IP55 rotating laser

Rotaing Laser FRE208-2S red beam/green beam with slope setting and LED dispaly


Type:red beam and green beam


Dual-dial-in grade (±10%)

Can be used for both horizontal precise applications.

Power Bright Red diode can provide high quality beam in indoor circumstances

 Suitable for Long Range working, layout, foundation building

Tilt Alert function when the laser is disturbed

Rubber Protection / metal made top cover for anti-shocking/ resistance

Accuracy: H: ±15’’ (0.75mm in 10m), V: ±15’’ (0.75mm in 10m

 Manual Function allows easy slope/ Gradient job sites.

 Slope Setting : ±10%, Slope Accuracy: ±20’(1mm in 10m

Manual Slope Function allows quick gradient tasks

Compensation Self-leveling Range: 5º

Measuring Range Diameter: Min 500m (With laser detector)

Spinning Speed 60,120,300,600 r.p.m.

Left/ Right Spinning

Direction scanning: 10°;45°;90°;180°

Remote Distance ( Wireless) : Approximately 60m indoor / 20m outdoor depending on operating position.

Power supply: Ni-battery

Continuous Working Hrs: 40hrs, depending on operating condition.

Operating Temperature: -20℃-- +50℃(-4ºF-- +122ºF)
