Home ProductsAuto Level Survey Instrument

32X Auto Level Survey Instrument

Certification
China GEO-ALLEN CO.,LTD. certification
China GEO-ALLEN CO.,LTD. certification
I'm Online Chat Now

32X Auto Level Survey Instrument

32X Auto Level Survey Instrument
32X Auto Level Survey Instrument 32X Auto Level Survey Instrument 32X Auto Level Survey Instrument

Large Image :  32X Auto Level Survey Instrument

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SOUTH
Model Number: NL-32G
Payment & Shipping Terms:
Minimum Order Quantity: 4 pcs
Packaging Details: Carton
Delivery Time: 10 days
Supply Ability: 500 pcs per month

32X Auto Level Survey Instrument

Description
Color: Yellow / Black Magnification: X32
Brand: SOUTH Compensator: Magnetic Damping
High Light:

NL 32G Auto Level Survey Instrument

,

SOUTH auto level instrument

,

X32 auto level machine

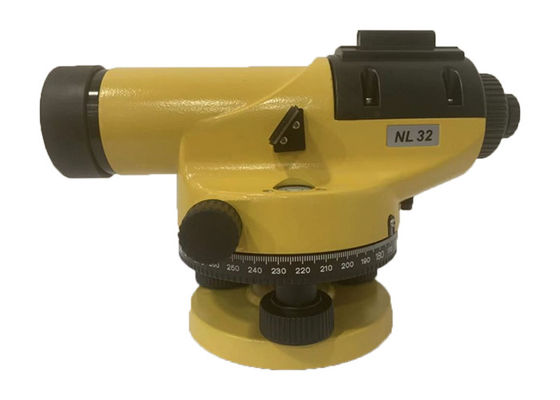

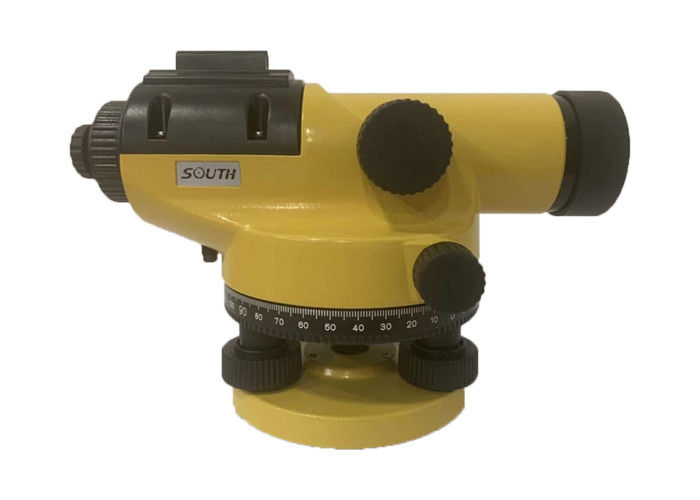

32X Auto Level SOUTH BRAND NL-32G Magnetic Damping Optical Survey Instrument



Main Features

* Dependable and durable tools for leveling

32X magnification, also available in 28x, 24x, 20x.

* Excellent shockproof design

* Magnetic damping compensator



Specifications



  NL-20G NL-24G NL-28G NL-32G
Magnification 20x 24x 28x 32x
Effective Objective Aperture 34mm 36mm 36mm 38mm
Image Erect
Field of View 1°20'
Minimum Focus Distance 0.6m
Multiplication Constant 100
Additive Constant 0
Compensator Type Magnetic Damping
Compensator Range ±15'
Compensator Accuracy ±0.6" ±0.6" ±0.6" ±0.6"
Standard 1km Deviation 2.5mm 2.0mm 1.5mm 1.0mm
Sensitivity 8'/2mm
Circle Graduation 360° or 400 gon
Protection Class IP54
Working Temperature - 20℃ ~ +50℃
Storage Temperature - 40℃ ~ +70℃
Net Weight 1.8kg



32X Auto Level Survey Instrument 0
