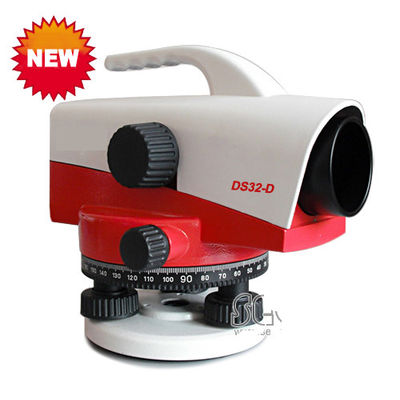

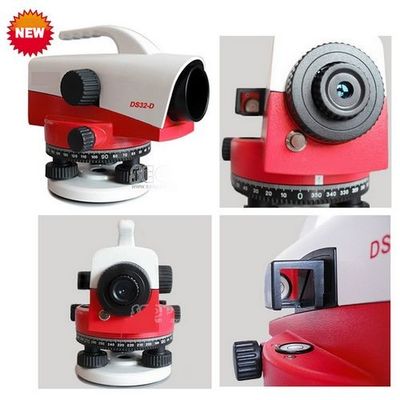

Construction 360D 400G Auto Level Suvey Instrument

Construction 360D 400G Auto Level Suvey Instrument
Construction 360D 400G Auto Level Suvey Instrument Construction 360D 400G Auto Level Suvey Instrument

Large Image :  Construction 360D 400G Auto Level Suvey Instrument

Product Details:
Place of Origin: china
Brand Name: GEOALLEN
Model Number: DS32-D Auto level
Payment & Shipping Terms:
Minimum Order Quantity: 4 PCS
Price: USD
Packaging Details: plastic case & carton box
Payment Terms: L/C, T/T
Supply Ability: 10000PCS

Construction 360D 400G Auto Level Suvey Instrument

Color: Red Magnification: 32X
Image: Erect Degree: 360D/400G
Leveling Accuracy: ±0.3"
High Light:

400G automatic levelling instrument


360D auto level instrument


32X auto level machine

 DS32-D Auto level



Technical Parameters DS32-D
Standard Deviation for 1km Double-run Leveling 1.0mm
Telescope Magnification 32×
Telescope Image Erect
Effective Aperture Size of Object Lens 40mm
Field of View 1°20
Shortest Sighting Distance 0.65m
Stadia Multiplication 100
Addition Constants 0
Compensator Type X wire-hung and air-damping
Compensator Working range ±15'
Leveling Accuracy ±0.3"
Accuracy of Circular Level 8/2'mm
Horizontal Circle 360°or 400Gon optional
Net. Weight 1.6kg
Standard Accessories Adjusting Pin, Hex key, Desiccating Agent.
Plastic Carry Case, Plumb Bob, User Manual
Packing Details 4sets per Carton:12kgs per Carton
Carton Dimentions:47cmX36cmX47cm
